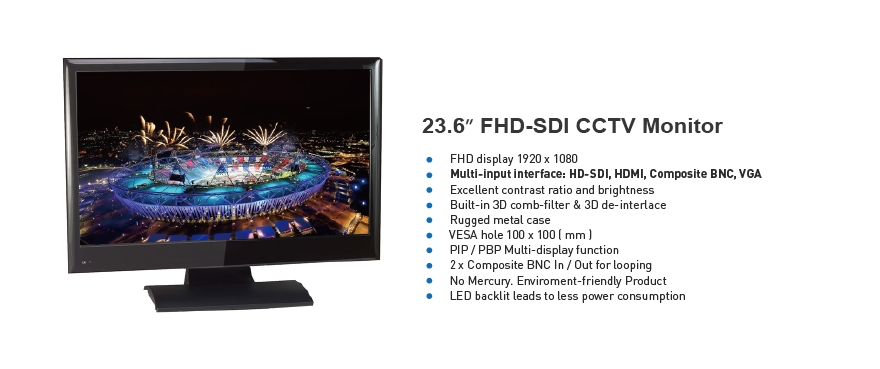

23.6″ FHD HD-SDI CCTV Monitor
 General   Diagonal size 23.6″
  Panel type TFT LCD
  Aspect ratio 16:9
  Number of pixels 1920 x 1080
  Pixel pitch 0.24825 x 0.24825 mm
  Color depth 16.7 Million Colors
  Backlight LED
 Optical (typ.)   Brightness 300 cd/m2
  Contrast ratio 10000:1
  Response time ( Tr + Tf) 5 ms
  Viewing angle Vertical -85°~85°Horizontal -80°~80°
 Operation   Input Interface BNC x 1, VGA x 1, HDMI x 1, SDI x 1
  Output Interface BNC x 1, SDI x 1
  Display mode Video / PC / HDMI / SDI
  OSD Picture Mode, Contrast, Brightness, Color, Tint, Sharpness, Color Temp, DNR
  OSD Languages English, German, French, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech
  Additional modes No
  Speaker 1.5 W x 2
  Remote control Yes
 Composite Video   System PAL / NTSC
  Video processing Motion Adaptive 3D De-Interlacer and DNR, 4H Comb filter Y/C separation
 Electrical   AC power   AC 100-240V 50/60HZ
  Power consumption 36W Max. in “ON” ModeUnder 3W in Power Saving Mode (100 Vac)Under 5W in Power Saving Mode (240 Vac)
  Power supply External Power Adaptor
 Mechanical   Case material Plastic
  Color Black

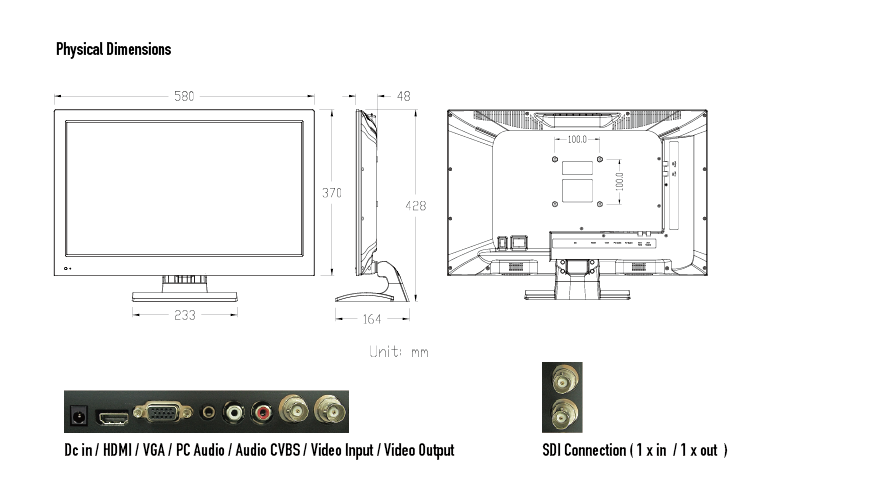

  Dimension ( W x H x D)(include stand) 580 x 428 x 164 mm
  Mounting interface 100 x 100 mm , M4 x 4 holes
  Net weight (Monitor & stand) 4.6Kgs (10.1 lbs)
  Environment   Temperature Operation: 0°~40°C(32° ~104°F)Storage: -10°~60°C(14° ~140°F)
  Humidity 10%-90%
  Standards   Safety FCC, CE, ROHS
  Delivery set Monitor, Power cord with adaptor, VGA cable, User Manual
* The Specifications are subject to change without notice
