| General |
Diagonal size |
17″ |
| Panel type |
TFT LCD |
| Aspect ratio |
4 : 3 |
| Number of pixels |
1280 x 1024 |
| Pixel pitch |
0.264 x 0.26 mm |
| Color depth |
16.7 Million Colors |
| Backlight |
LED |
| Optical (typ.) |
Brightness |
300 cd/m2 |
| Contrast ratio |
1000:1 |
| Response time ( Tr + Tf) |
5 ms |
| Viewing angle |
Vertical -80°~80°Horizontal -85°~85° |
| Operation |
Input Interface |
BNC x 2, VGA x 1, HDMI x 1, RCA x 2, PC Audio x 1 |
| Output Interface |
BNC x 2 |
| Display mode |
Video 1 / Video 2 / PC / HDMI |
| OSD |
Picture Mode, Contrast, Brightness, Color, Tint, Sharpness, Color Temp, DNR |
| OSD Languages |
English, German, French, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech |
| Additional modes |
No |
| Speaker |
1.5 W x 2 |
| Remote control |
Optional |
| Composite Video |
System |
PAL / NTSC |
| Video processing |
Motion Adaptive 3D De-Interlacer and DNR, 4H Comb filter Y/C separation |
| Electrical |
AC power |
AC 100-240V 50/60HZ |
| Power consumption |
< 35W |
| Power supply |
External power adapter |
| Mechanical |
Case material |
Plastic |
| Color |
Black |

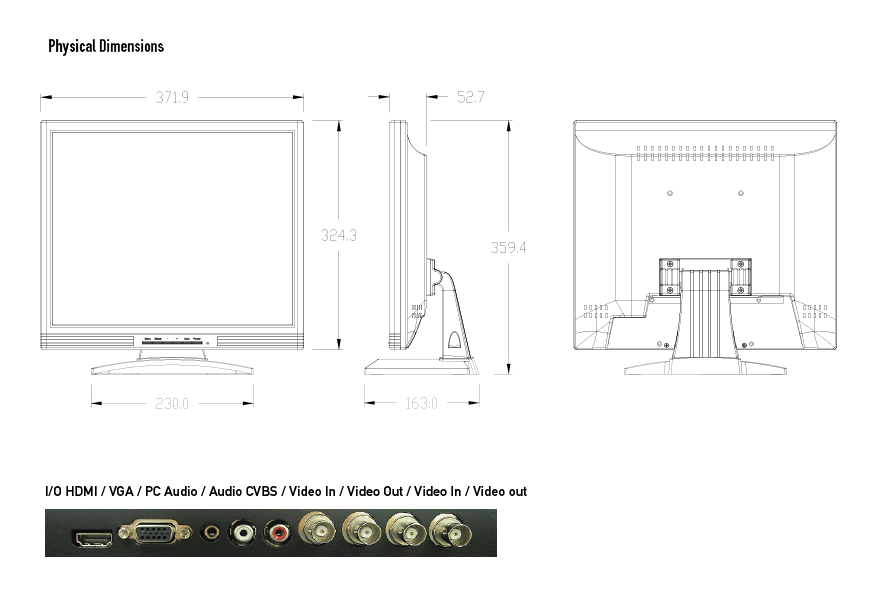

| Dimension ( W x H x D)(include stand) |
372 x 359 x 163 mm |
| Support |
Pedestal base |
| Mounting interface |
100 x 100 mm , M4 x 4 holes |
| Net weight (Monitor & stand) |
3.2Kgs (7.1 lbs) |
| Environment |
Temperature |
Operation: 0°~40°C(32° ~104°F)Storage: -10°~60°C(14° ~140°F) |
| Humidity |
10%-90% |
| Standards |
Safety |
FCC, CE, RoHS |
| Delivery set |
|
Monitor, Power cord with adapter, VGA cable, User Manual |
| * The Specifications are subject to change without notice |
