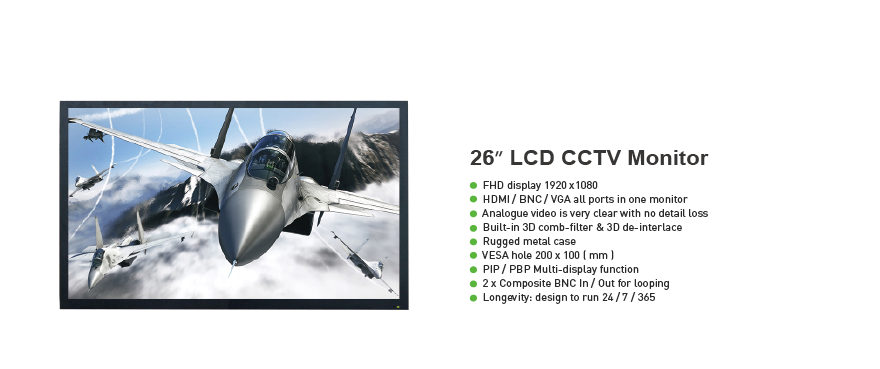

26″ LCD CCTV Monitor
|
||
 |
||
| General | Diagonal size | 26″ |
| Panel type | TFT LCD | |
| Aspect ratio | 16:10 | |
| Number of pixels | 1920 x 1200 | |
| Pixel pitch | 0.2865 x 0.286 mm | |
| Color depth | 16.7 Million Colors | |
| Backlight | LED | |
| Optical (typ.) | Brightness | 400 cd/m2 |
| Contrast ratio | 1000:1 | |
| Response time ( Tr + Tf) | 5 ms | |
| Viewing angle | Vertical -80°~80°Horizontal -80°~80° | |
| Operation | Input Interface | BNC x 1, VGA x 1, HDMI x 1, SDI x 1 |
| Output Interface | BNC x 1, SDI x 1 | |
| Display mode | Video / PC / HDMI / SDI | |
| OSD | Picture Mode, Contrast, Brightness, Color, Tint, Sharpness, Color Temp, DNR | |
| OSD Languages | English, German, French, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech | |
| Additional modes | No | |
| Speaker | 1.5 W x 2 | |
| Remote control | Yes | |
| Composite Video | System | PAL / NTSC |
| Video processing | Motion Adaptive 3D De-Interlacer and DNR, 4H Comb filter Y/C separation | |
| Electrical | AC power | AC 100-240V 50/60HZ |
| Power consumption | < 100W | |
| Power supply | AC Power Cord | |
| Mechanical | Case material | Metal |
| Color | Black | |

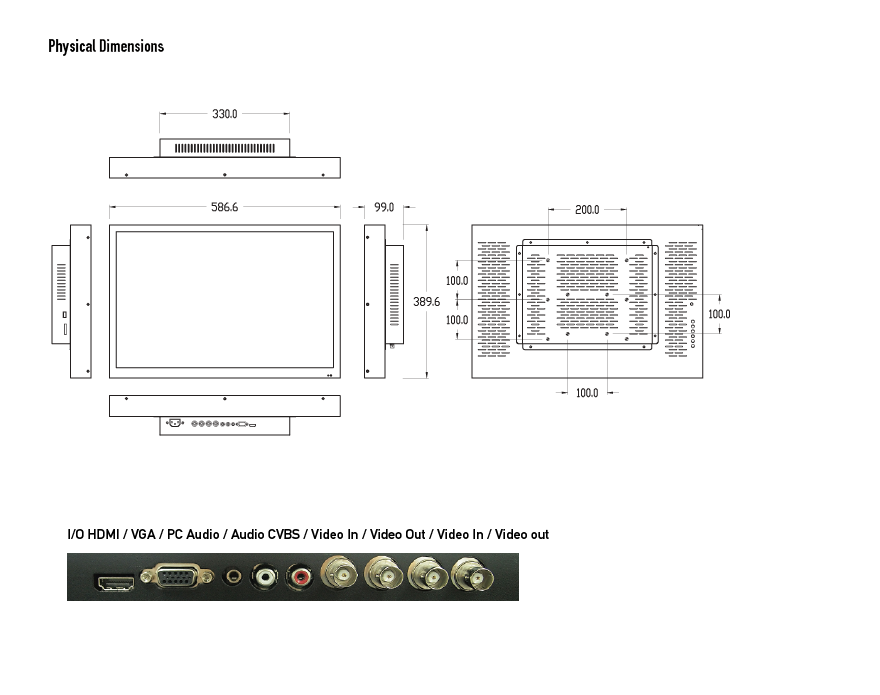

| Dimension ( W x H x D)
(include stand) |
587 x 390 x 99 mm | |
| Mounting interface | 200 x 100 mm | |
| Net weight
(Monitor & stand) |
8.8Kgs (19.4 lbs) | |
| Environment | Temperature | Operation: 0°~40°C(32° ~104°F)Storage: -10°~60°C(14° ~140°F) |
| Humidity | 10%-90% | |
| Standards | Safety | FCC, CE, RoHS |
| Delivery set | Monitor, Power cord r, VGA cable, User Manual | |
| * The Specifications are subject to change without notice | ||
