| General |
Diagonal size |
9.7″ |
| Panel type |
TFT LCD |
| Aspect ratio |
4 : 3 |
| Number of pixels |
1024 x 768 |
| Pixel pitch |
0.192 x 0.192 mm |
| Color depth |
262K Colors |
| Backlight |
LED |
| Optical (typ.) |
Brightness |
400 cd/m2 |
| Contrast ratio |
1000:1 |
| Response time ( Tr + Tf) |
4 ms |
| Viewing angle |
Vertical -89°~89°Horizontal -89°~89° |
| Operation |
Input Interface |
BNC x 1, VGA x 1, HDMI x 1, USB-Video x 1, USB-RCA x 2, PC Audio x 1 |
| Output Interface |
USB-BNC x 1 |
| Display mode |
Video / PC / HDMI |
| OSD |
Picture Mode, Contrast, Brightness, Color, Color Temp, Sharpness, Color Temp, DNR |
| OSD Languages |
English, German, French, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech |
| Additional modes |
No |
| Speaker |
1.5 W x 2 |
| Remote control |
Yes |
| Composite Video |
System |
PAL / NTSC |
| Video processing |
Motion Adaptive 3D De-Interlacer and DNR, 4H Comb filter Y/C separation |
| Electrical |
AC power |
DC11.5V-13V or AC 100-240V |
| Power consumption |
15W Max. in “ON” ModeUnder 0.5W in Power Saving Mode (100 Vac)Under 0.5W in Power Saving Mode (240 Vac) |
| Power supply |
External power adapter |
| Mechanical |
Case material |
Plastic |
| Color |
Black |

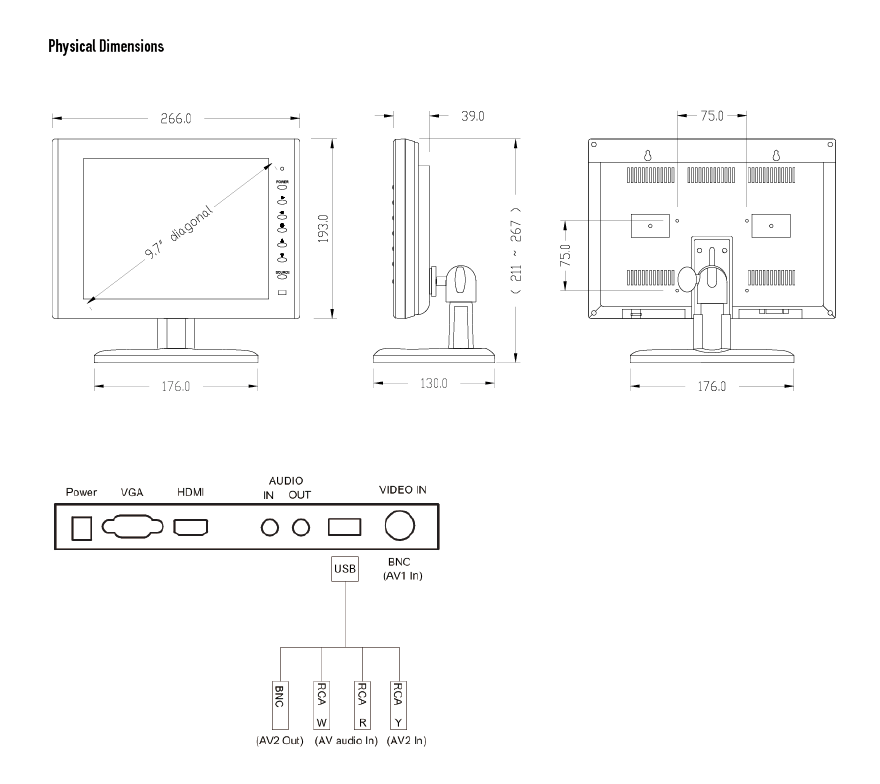

| Dimension ( W x H x D)(without stand) |
266 x 193 x 39 mm |
| Support |
Pedestal Stand |
| Mounting interface |
75 x 75 mm |
| Net weight (Monitor & stand) |
1.2Kgs |
| Environment |
Temperature |
Operation: 0°~40°C(32° ~104°F)Storage: -10°~60°C(14° ~140°F) |
| Humidity |
10%-90% |
| Standards |
Safety |
FCC, CE, ROHS |
| Delivery set |
|
Monitor, Adapter, VGA cable, Remote, Stand, User Manual |
| * The Specifications are subject to change without notice |
