| General |
Diagonal size |
27″ |
| Panel type |
TFT LCD |
| Aspect ratio |
16 : 9 |
| Number of pixels |
1920 x 1080 |
| Pixel pitch |
311.25 x 311.254 mm |
| Color depth |
16.7 Million Colors |
| Back-light |
LED |
| Optical (typ.) |
Brightness |
300 cd/m2 |
| Contrast ratio |
1000:1 |
| Response time ( Tr + Tf) |
5 ms |
| Viewing angle |
Vertical -85°~85°Horizontal -88°~88° |
| Camera Spec. |
Lens |
2.8 ~ 10.5 ( mm ) F1.2 ~ 2.6 Vari-Focal DC lens |
| Picture Elements |
NTSC: 976 x 494, Pal: 976 x 582 |
| Rate |
700 TVL WDR |
| Focal Lens |
Wide: 99.5° x 73.2° , Tele: 27.4° x 20.6° |
| SN Ratio |
More than 50dB |
| Illumination |
0.02 Lux@F1.2 Color mode |
| Iris Control |
Auto |
| On-screen-display |
Yes |
| Operation |
Input Interface |
BNC x 1, VGA x 1, HDMI x 1, RCA x 2, PC Audio x 1, USB x 1 |
| Output Interface |
BNC x 2 |
| Display mode |
Video / Camera / PC / HDMI |
| OSD |
Picture Mode, Contrast, Brightness, Color, Tint, Sharpness, Color Temp, DNR |
| OSD Languages |
English, German, French, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech |
| Additional modes |
No |
| Speaker |
1.5 W x 2 |
| Remote control |
Optional |
| Composite Video |
System |
PAL / NTSC |
| Video processing |
Motion Adaptive 3D De-Interlacer and DNR, 4H Comb filter Y/C separation |
| Electrical |
AC power |
AC 100-240V 50/60HZ |
| Power consumption |
< 45W |
| Power supply |
AC Power Cord |
| Mechanical |
Case material |
Metal |
| Chassis Color |
Black / White |

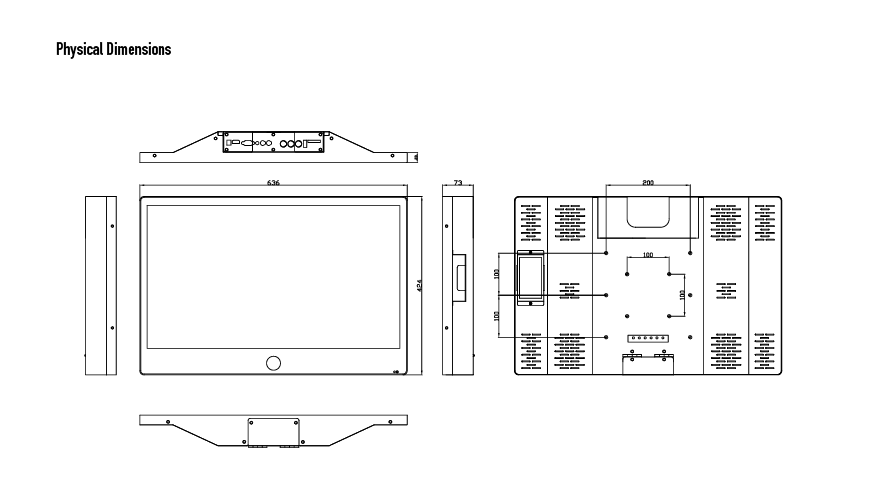

| Dimension ( W x H x D)(include stand) |
636 x 424 x 73 mm |
| Support |
Optional |
| Mounting interface |
100 x 100 ; 200 x 200 mm , M4 x 4 holes |
| Net weight (Monitor & stand) |
12.0Kgs (26.5 lbs) |
| Environment |
Temperature |
Operation: 0°~40°C(32° ~104°F)Storage: -10°~60°C(14° ~140°F) |
| Humidity |
10%-90% |
| Standards |
Safety |
FCC, CE, RoHS |
| Delivery set |
|
Monitor, Power cord with adapter, VGA cable, User Manual, Remote |
| * The Specifications are subject to change without notice |
