| General |
Diagonal size |
9.7″ |
| Panel type |
TFT LCD |
| Aspect ratio |
4:3 |
| Number of pixels |
1024 x 768 |
| Pixel pitch |
0.192 x 0.192 mm |
| Color depth |
16.7 Million Colors |
| Backlight |
LED |
| Optical (typ.) |
Brightness |
400 cd/m2 |
| Contrast ratio |
1000:1 |
| Response time ( Tr + Tf) |
4 ms |
| Viewing angle |
Vertical -89°~89° /Horizontal -89°~89° |
| Operation |
Input Interface |
BNC x 2, VGA x 1, HDMI x 1, RCA x 2,PC Audio x 1 |
| Output Interface |
BNC x 2 |
| Display mode |
Video 1 / Video 2 / PC / HDMI |
| OSD |
Picture Mode, Contrast, Brightness, Color, Tint, Sharpness, Color Temp, DNR |
| OSD Languages |
English, German, French, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech |
| Additional modes |
No |
| Speaker |
1.5 W x 2 |
| Remote control |
No |
| Composite Video |
System |
PAL / NTSC |
| Video processing |
Motion Adaptive 3D De-Interlacer and DNR, 4H Comb filter Y/C separation |
| Electrical |
AC power |
AC 100-240V 50/60HZ |
| Power consumption |
30W Max. in “ON” ModeUnder 0.5W in Power Saving Mode (100 Vac)Under 0.5W in Power Saving Mode (240 Vac) |
| Power supply |
External power adapter |
| Mechanical |
Case material |
Metal |
| Color |
Normally black, other colors are available (for quantity up to 100pcs per model) |
| Dimension( W x H x D)(include stand) |
446 x 221.4 x 47 mm |
| Mounting interface |
VESA mount 75 x 75 mm , 100 x 100mmtripod mount 1/4″-20 in top and bottom |
| Net weight |
3.1Kg(include 19″ rack mount) |
| Gross weight |
3.7Kg |
| Environment |
Temperature |
Operation: 0°~40°C(32° ~104°F)Storage: -10°~60°C(14° ~140°F) |
| Humidity |
10%-90% |
| Standards |
Safety |
FCC, CE, ROHS |
| Pixel defect policy |
ISO13406-2 Compliant, LCD panel class 2 |
| Delivery set |
|
Monitor, Power cord with adapter, VGA cable, User Manual |
| Options |
Protective screen glass |
YES |
| Frame stand |
NO |
| Flush mount |
YES |
| Wall mount |
FC8888S |
| Ceiling mount |
FC8888SL |
|
|
|

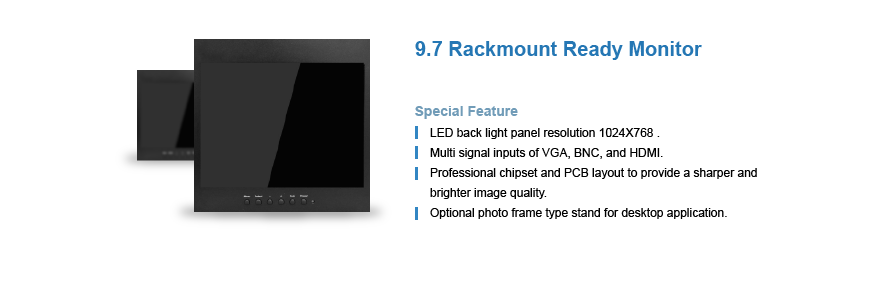

| Remark: A09M2-LED is a dual monitor model, the operation of each monitor is independent. |
