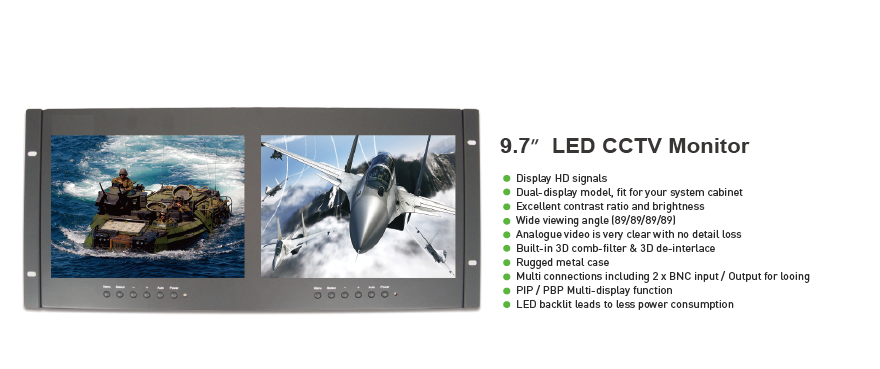

9.7″ LED CCTV Monitor, dual-display

 General   Diagonal size 9.7″
  Panel type TFT LCD
  Aspect ratio 4 : 3
  Number of pixels 1024 x 768
  Pixel pitch 0.192 x 0.192 mm
  Color depth 262K Colors
  Backlight LED ( 30K )
 Optical (typ.)   Brightness 400 cd/m2
  Contrast ratio 1000:1
  Response time ( Tr + Tf) 4 ms
  Viewing angle Vertical -89°~89°Horizontal -89°~89°
 Operation   Input Interface BNC x 4, VGA x 2, HDMI x 2, RCA x 4, PC Audio x 2
  Output Interface BNC x 4
  Display mode Video 1 / Video 2 / PC / HDMI
  OSD Picture Mode, Contrast, Brightness, Color, Tint, Sharpness, Color Temp, DNR
  OSD Languages English, German, French, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech
  Additional modes No
  Speaker 1.5 W x 4
  Remote control Optional
 Composite Video   System PAL / NTSC
  Video processing Motion Adaptive 3D De-Interlacer and DNR, 4H Comb filter Y/C separation
 Electrical   AC power   AC 100-240V 50/60HZ
  Power consumption 30W Max. in “ON” ModeUnder 0.5W in Power Saving Mode (100 Vac)Under 0.5W in Power Saving Mode (240 Vac)
  Power supply External power adapter
 Mechanical   Case material Metal
  Color Black

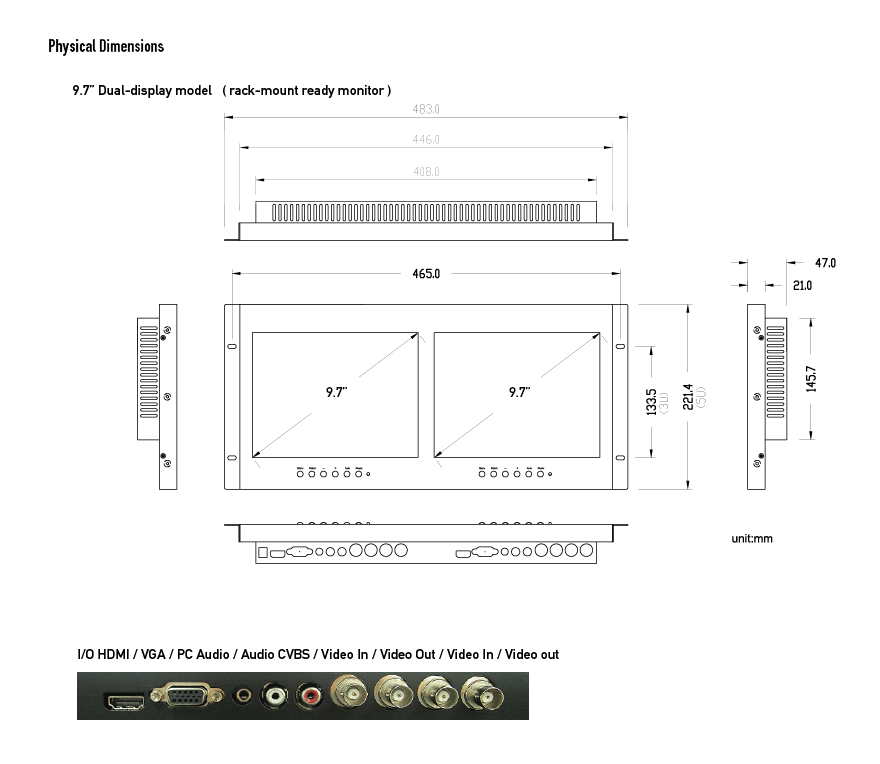

  Dimension ( W x H x D)(include stand) 446 x 221.4 x 47 mm
  Support Optional
  Mounting interface 75 x 75 mm , 100 x 100 mm
  Net weight (Monitor & stand) 3.1Kgs
  Environment   Temperature Operation: 0°~40°C(32° ~104°F)Storage: -10°~60°C(14° ~140°F)
  Humidity 10%-90%
  Standards   Safety FCC, CE, ROHS
  Delivery set Monitor, Power cord with adapter, VGA cable, Rack Mount,User Manual
* The Specifications are subject to change without notice
